There are two remaining sets of MiurEssence unique raw castings available; if you are interested in purchasing one of the last two MiurEssence dry sump kits, please contact Scott Reid. Or, if you have questions regarding the dry sump system, the V12 valve springs, or would just like to talk with Scott about Miuras in general, don't hesitate to contact him via email at miuressence@austin.rr.com .................... or call 512-415-8253.

Description of the MiurEssence Dry Sump System

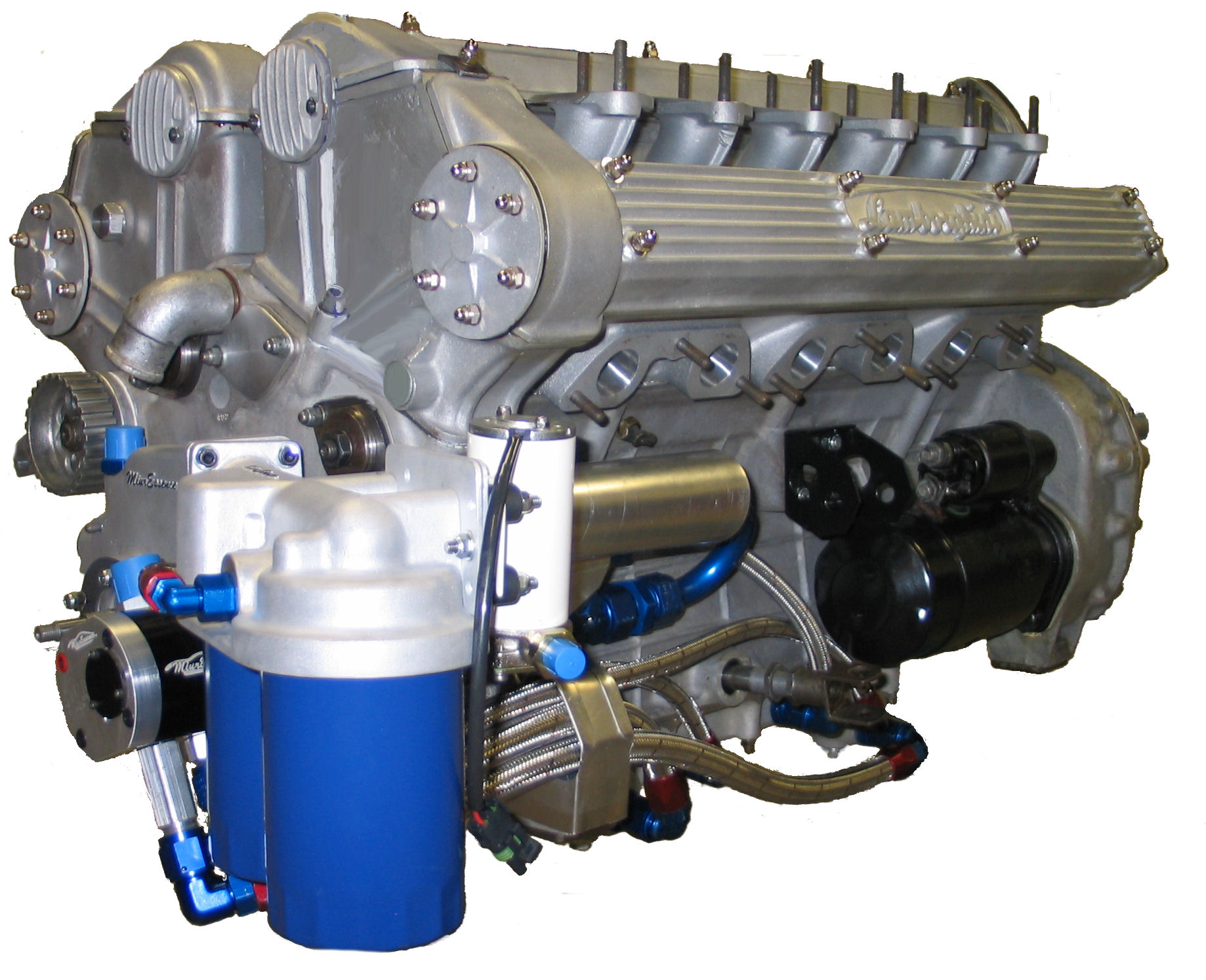

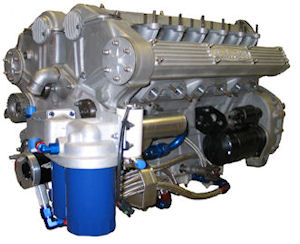

The MiurEssence Dry Sump System has been designed to conform to and complement the exquisite styling of the Lamborghini Miura engine. It is a bolt-on addition which replaces several original components and requires no permanent modification to your Lamborghini Miura. With this system, a Miura owner is able to fully utilize the Miura in the way it was designed to be used without damaging the engine due to an erratic oil supply (see the Journal Bearing Theory and Miura Oiling Issues section of the website.) The original parts can be reinstalled at a later time to return the car to its "as delivered" condition, if the owner chooses to do so.

The MiurEssence Dry Sump System includes:

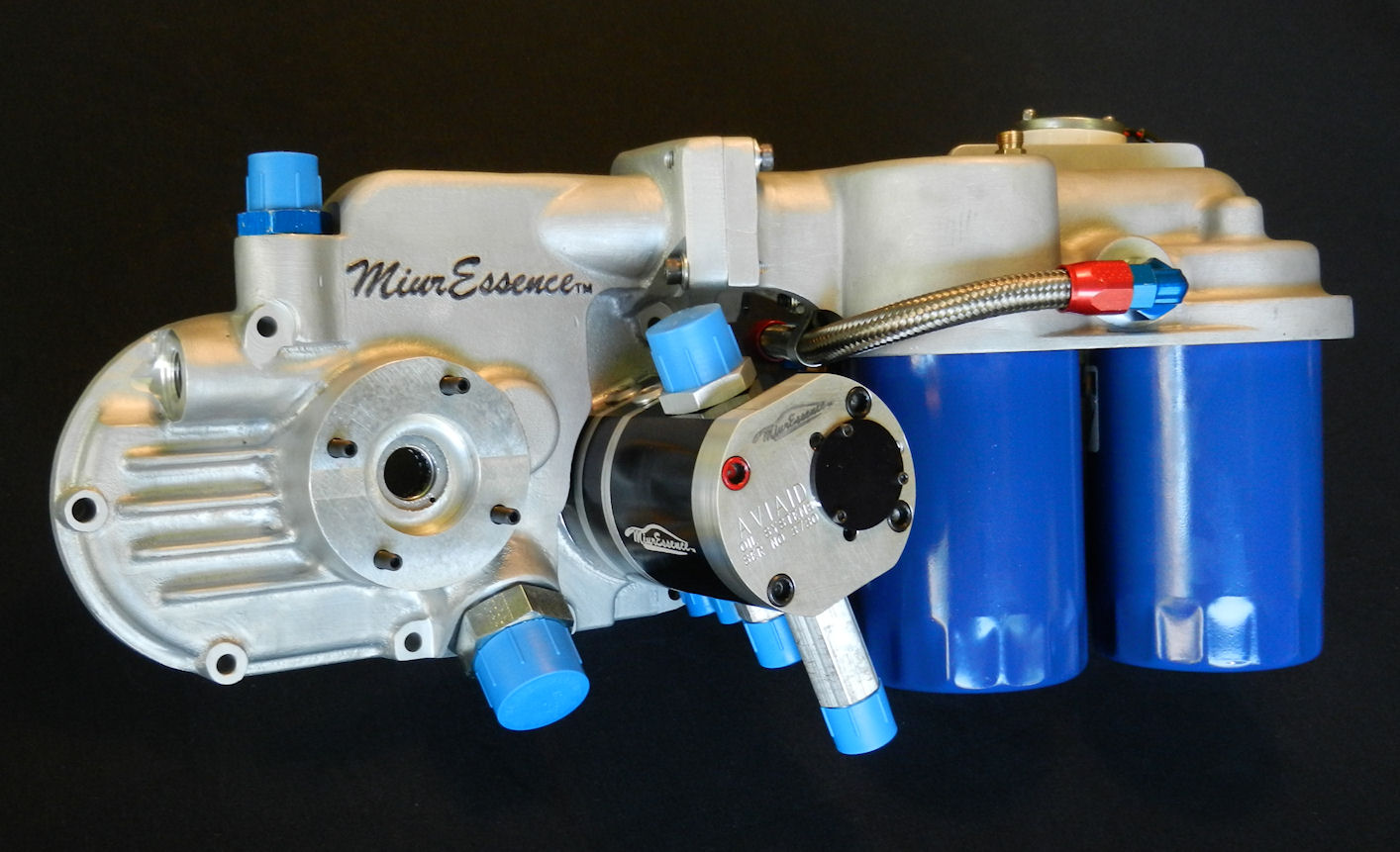

  • an oil pump casting, custom machined to match the original pump casting;
  • a twin oil filter housing with two filters;

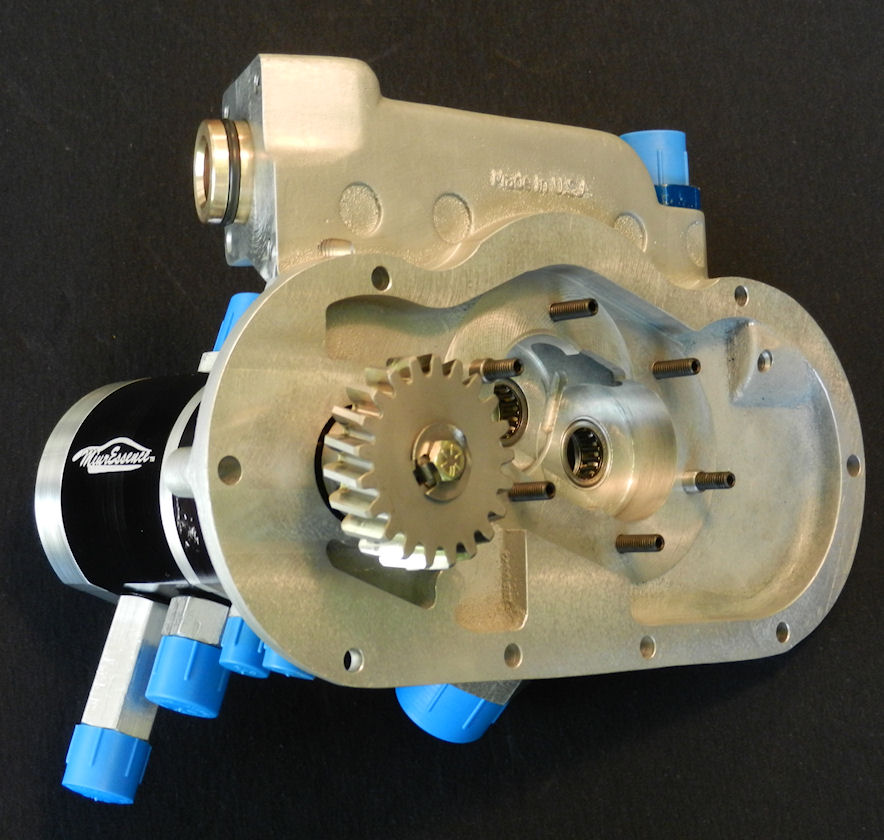

  • an internally gear driven four-stage scavenge pump (no external belt);
  • a scavenge pump drive gear;

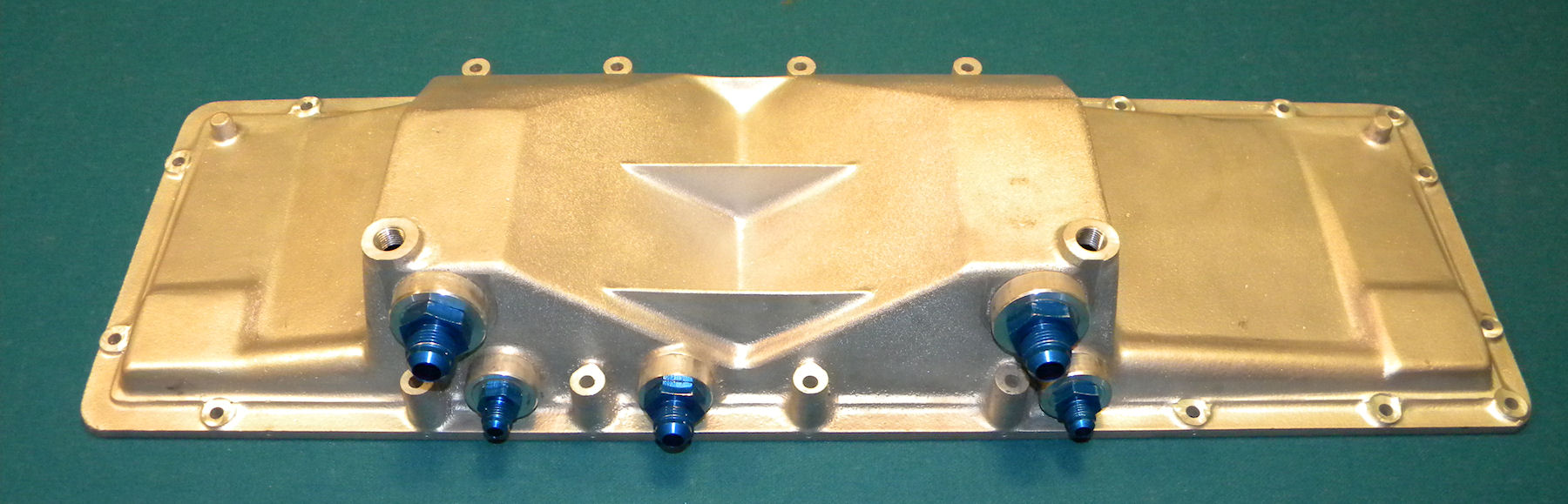

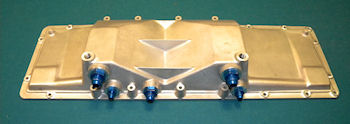

  • a dry sump pan with four sumps;
  • an external oil tank;
  • oil hoses and fittings;
  • gaskets;
  • two camshaft end covers;
  • an oil filler cap; and
  • an electric pre-oil pump.
  • an optional piston/gear pressurized oil spray assembly;
